Metal Roofing Options

Colors

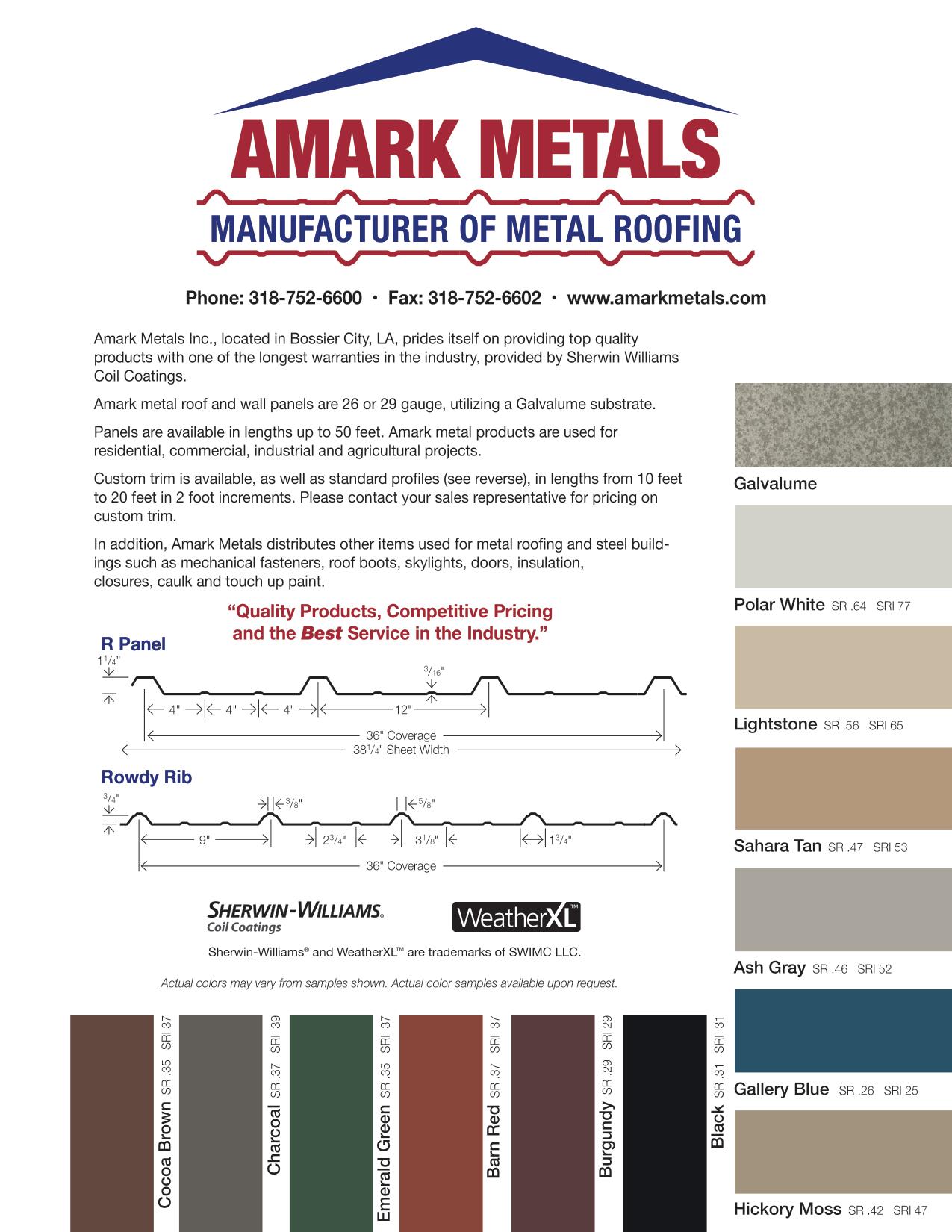

Amark Metals manufacturing and metal roofing flyer with red-and-blue logo and product color swatches

Panels

Black-and-white diagram of a radio wave with labeled wavelength segments and coverage distances.

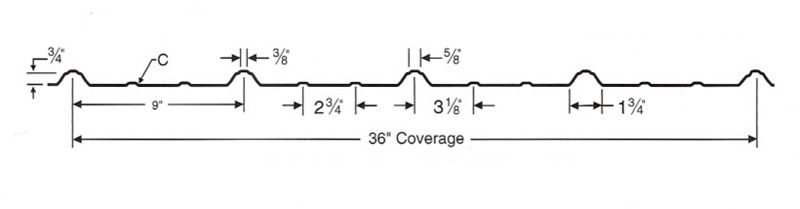

Rowdy Rib - 29 Gauge

Black-and-white line diagram showing a segmented bar with labeled dimensions and “6” coverage scale.

Rowdy Rib - 26 Gauge

Black-and-white technical drawing of a corrugated metal deck profile with labeled dimensions.

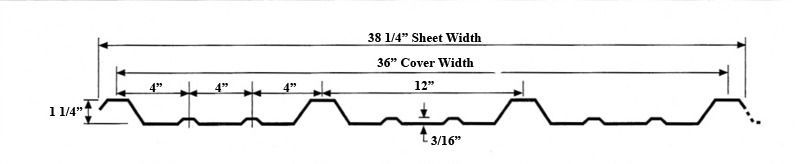

R Panel - 26 Gauge

Trim

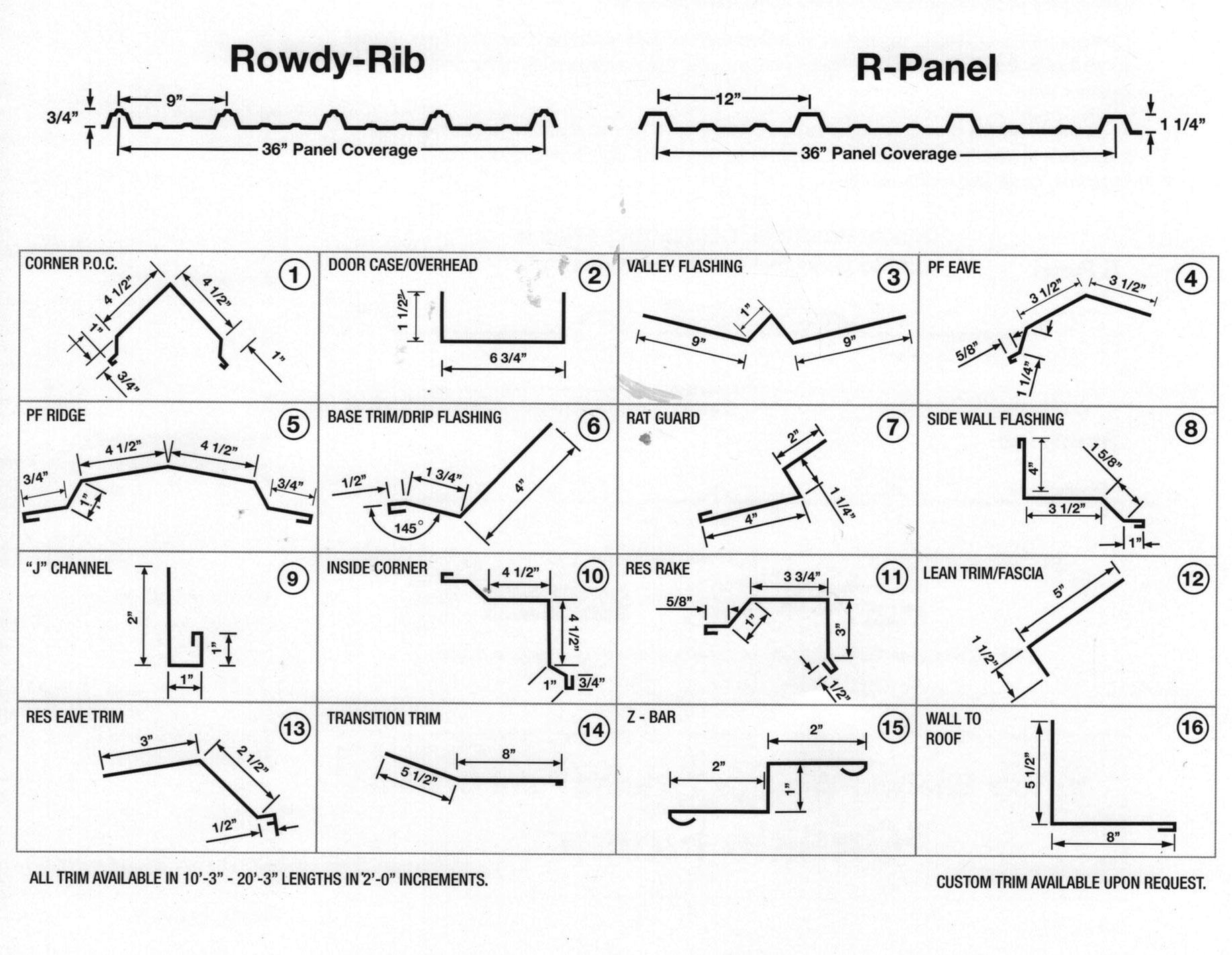

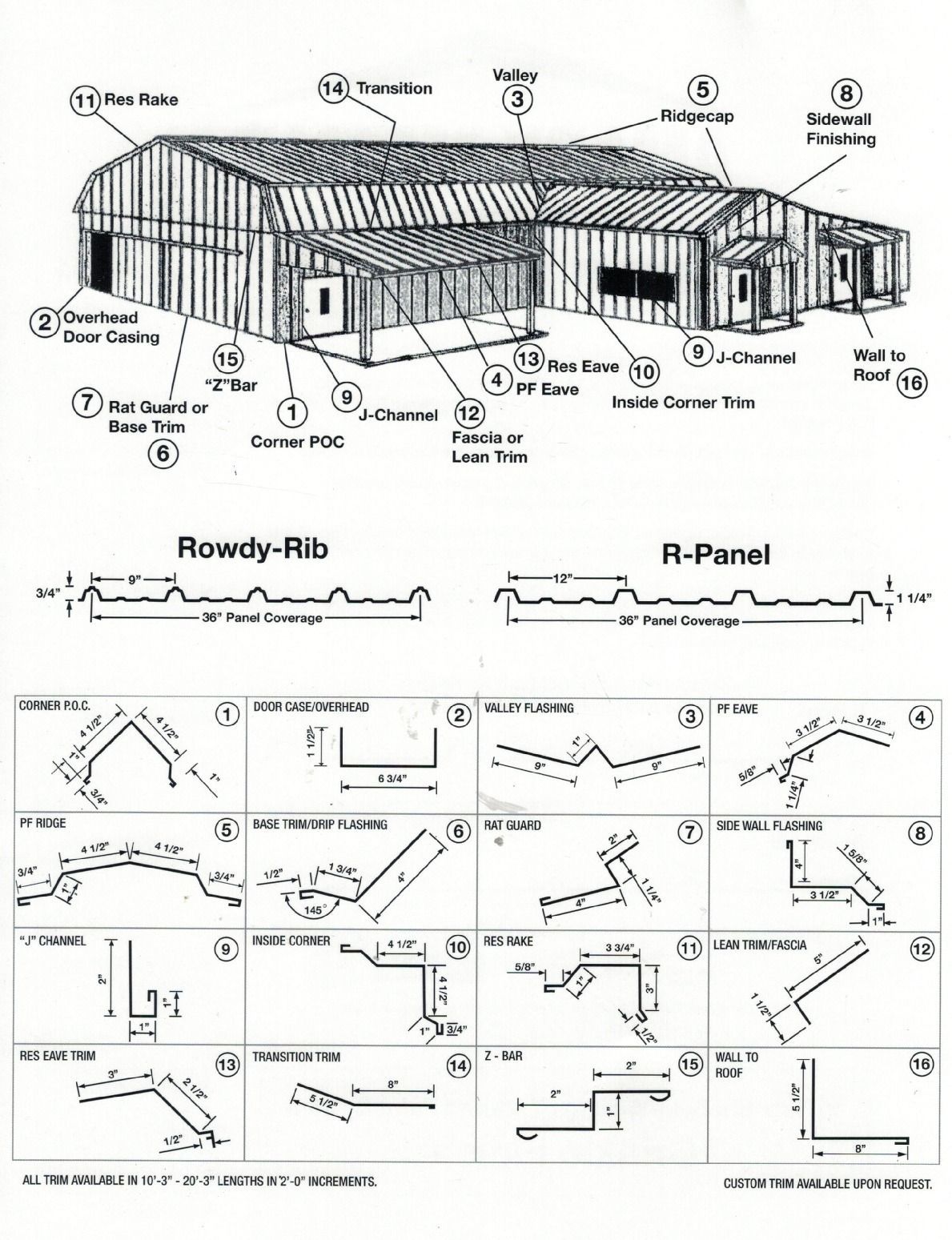

Roofing installation diagram showing a metal shed and detailed panel/trim instructions with labeled callouts and diagrams
Roof panel installation diagram with labeled steps for Rowdy-Rib and R-Panel fastening details

Purlin

Channel

Angle (available in Red oxide Only)


We also offer:

Doors (Roll Up)

Windows

Closures

All Purpose Boots

Premium Insulation

Rivets

Specialty Colors

Camo 29 GA & 26 GA

Patricia Bronze 26 GA only

Rural Red 26 GA only

Crimson Red 26 GA Only

Burnished Slate 26 GA Only

48" Bone white 24 GA

48" Med Bronze 24 GA

48" Patricia Bronze 24 GA

48" Galvanized 24 GA

48" Galvalume 24 GA

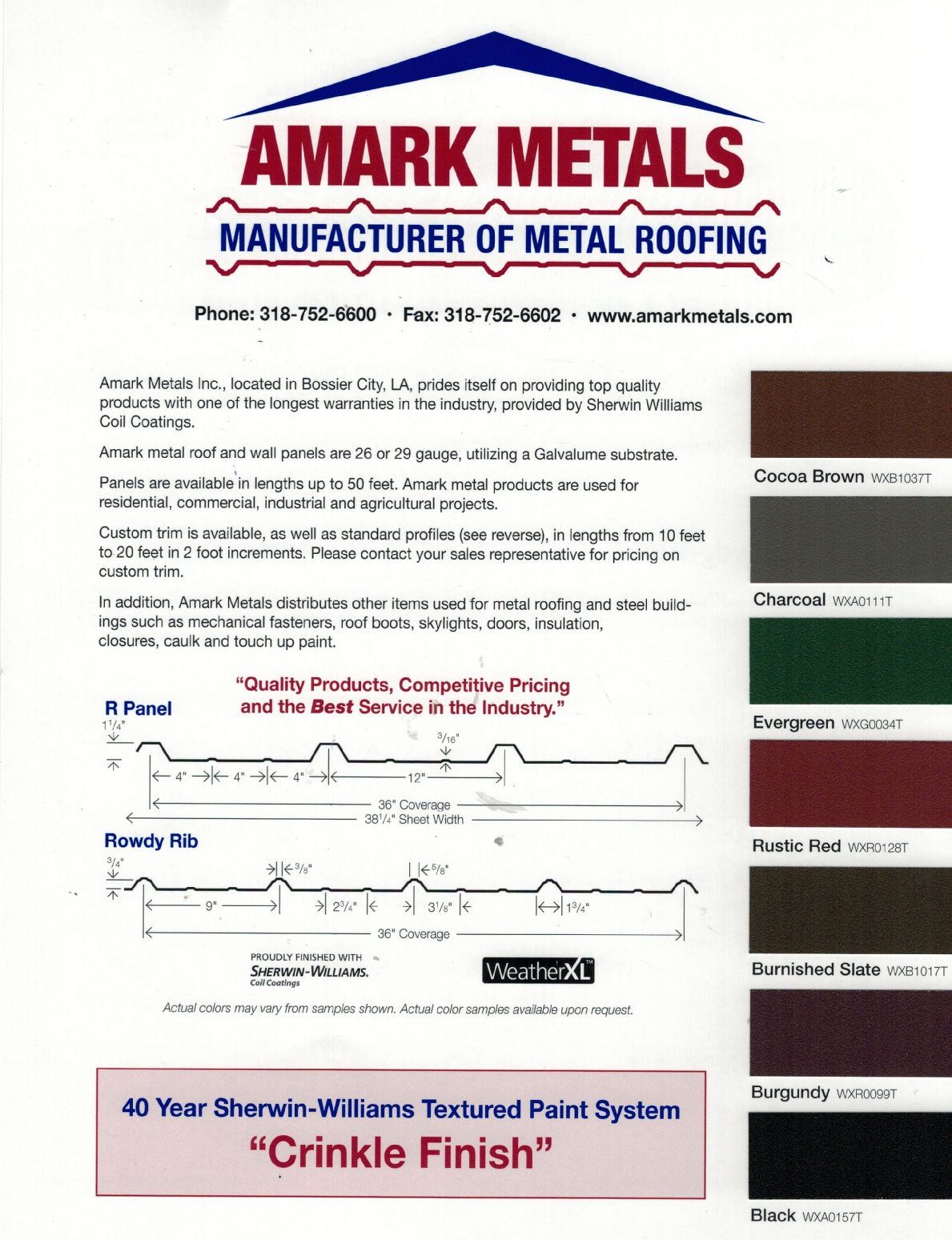

Crinkle Color Chart

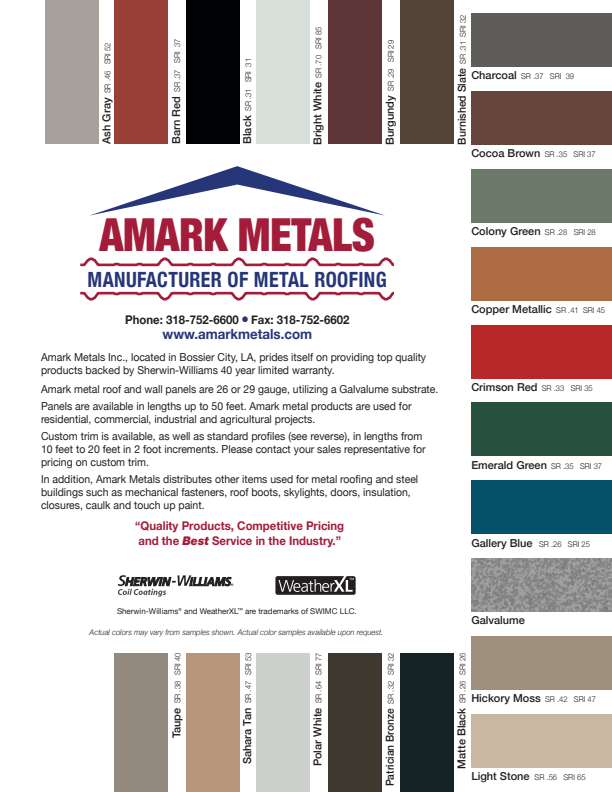

AMARK METALS brochure for metal roofing, with product details and color swatches on a white background

Standing Seam Profiles

Engineering drawing of a metal channel bracket with dimensioned views and title block

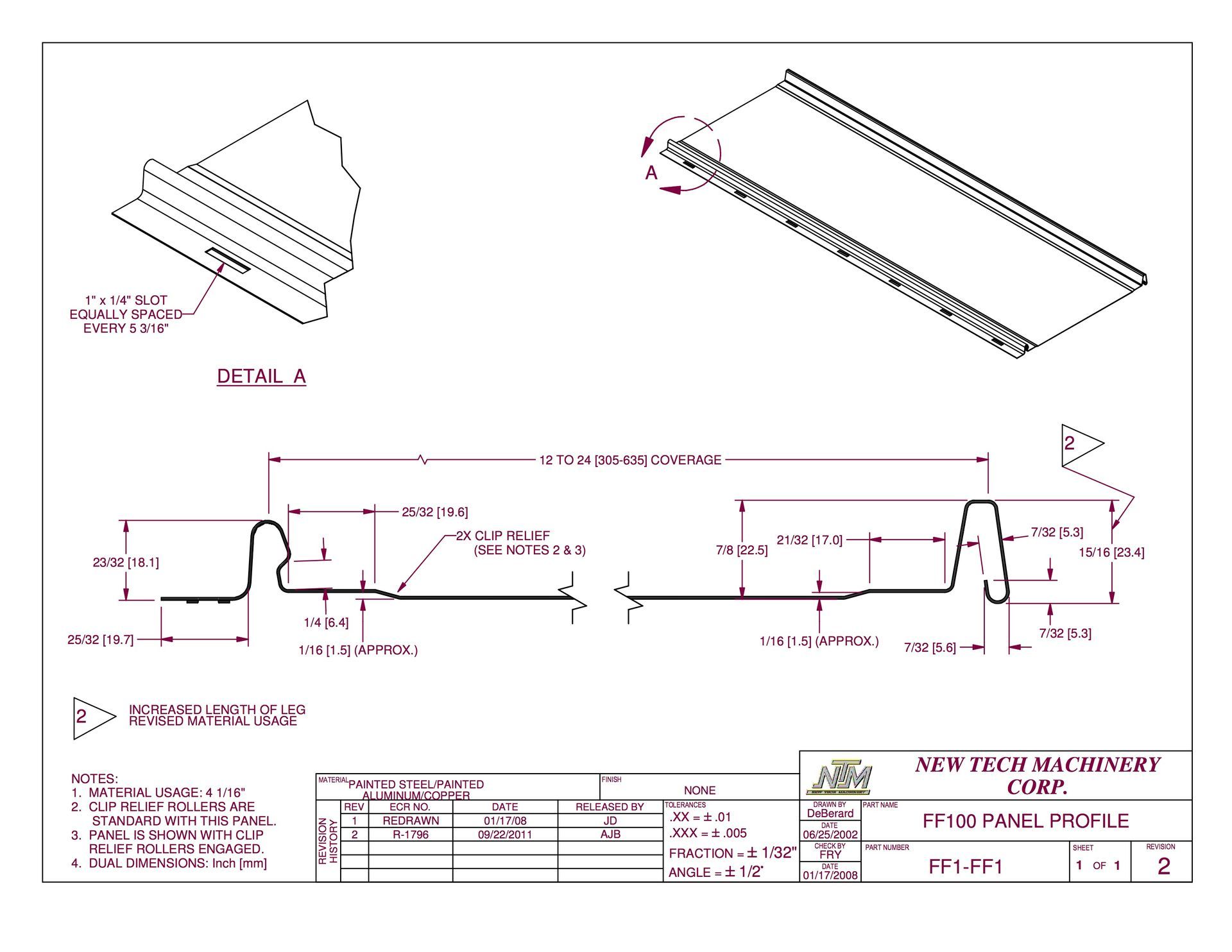

FF1-FF1

Technical engineering drawing of a long metal profile with dimensions, sections, and detailed annotations.

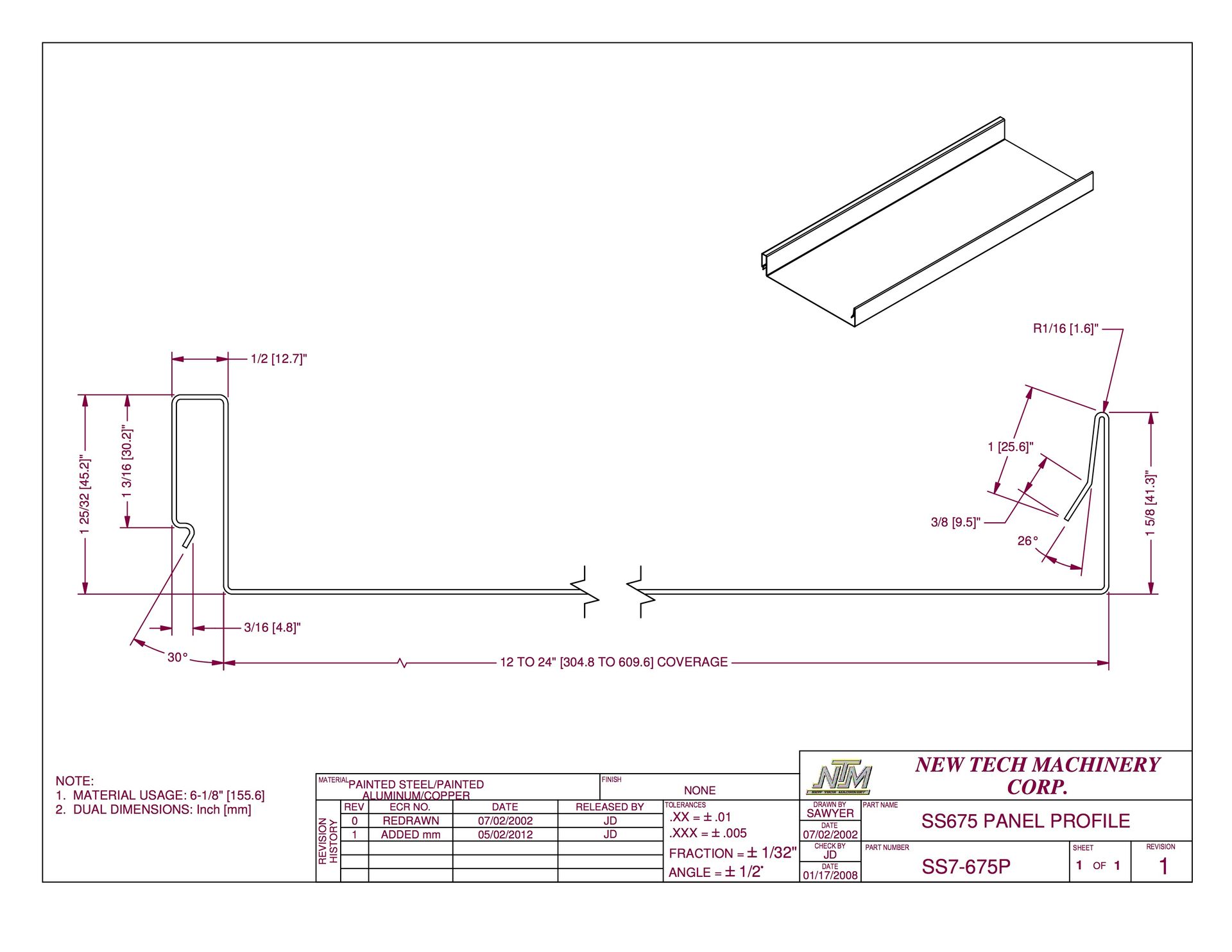

SS7-675P
